1, File Upload
2, breakpoint resume
3, time correction
4, automatic charging
5, automatic emptying
6, automatic acquisition
7, in line with the Ministry of public security standards of law enforcement equipment
|
Product advantages |
1, File Upload
2, breakpoint resume 3, time correction 4, automatic charging 5, automatic emptying 6, automatic acquisition 7, in line with the Ministry of public security standards of law enforcement equipment |
||
| Detailed technical parameters | |||
| System software | Operating system | Default Win7 system optional XP/Win8 / Win10 system | |
| Acquisition software | Intelligent data acquisition and management system | ||
|
Hardware configuration |

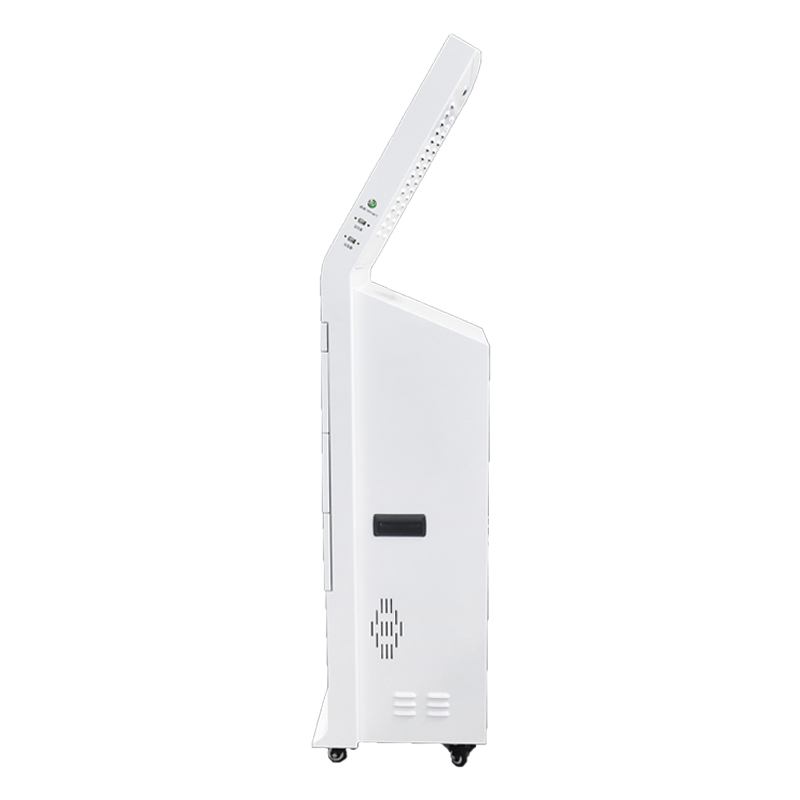

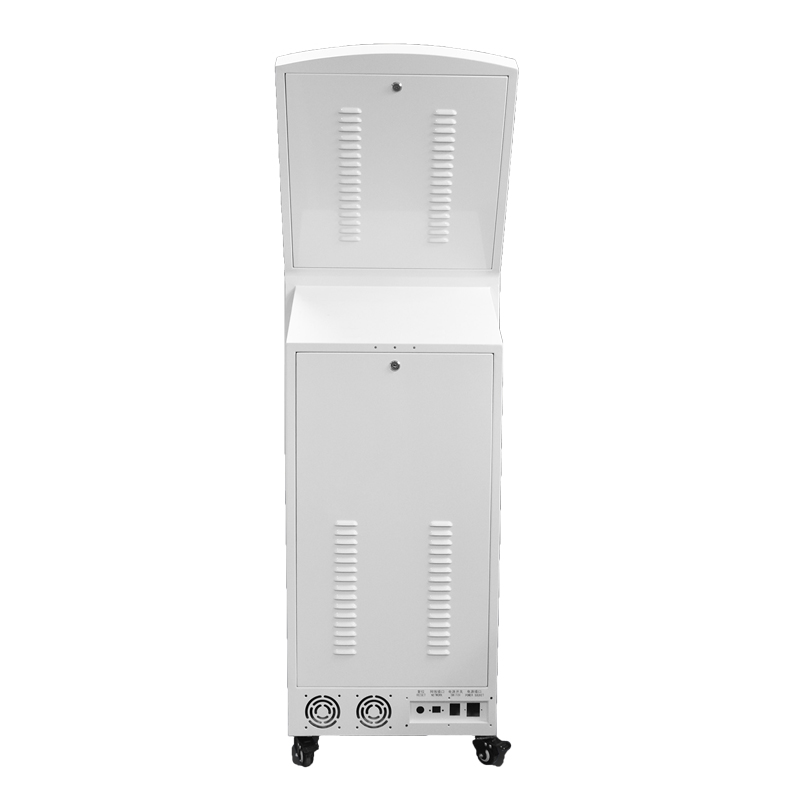

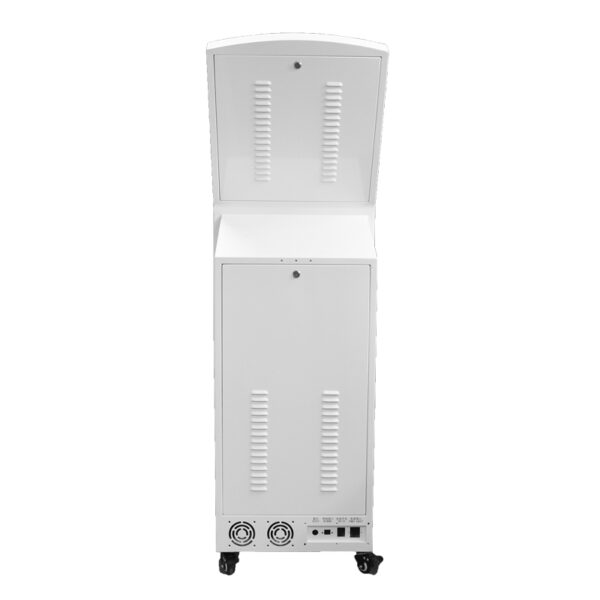

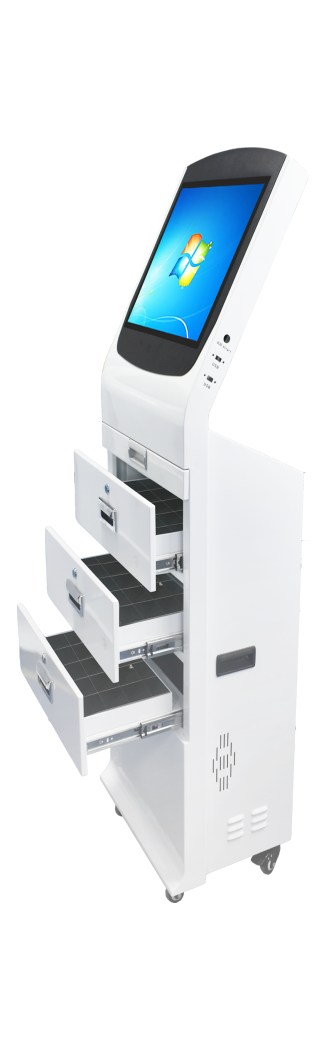

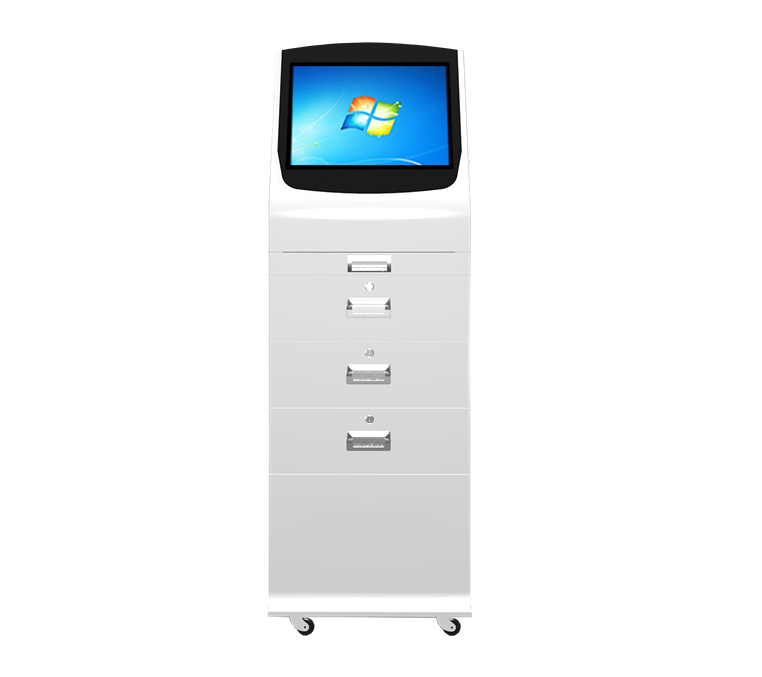

Appearance structure | All-in-one design, sheet metal paint process, with mobile casters, support brake residence | |
| Touch | 19 inch capacitive multi-touch | ||
| USB interface | 30-36 industrial HUB independent identification ,independent power supply , single-port current 2.0 A ,in addition to 2 * 2.0 USB interface | ||
| Display | AUO 19 inch LCD screen | ||
| Audio | Integrated Realtek ALC887 8-channel sound chip | ||
| Color | 16.2M | ||
| Brightness | 250cd/㎡ | ||
| Resolution | 1280*1024 | ||
| Contrast ratio | 1000:01:00 | ||
| VGA capacity | DB-15 interface | ||
| Motherboard | Gigabyte H81 | ||
| Memory bar capacity | 4GB (standard） | ||
| CPU | Intel I3 4160 3.6G | ||
| Solid state drives | 60G (standard） | ||
| Network interface | On-board Realtek RTL8111F gigabit network card | ||
| Hard drive accessories | PCI to high-speed large-capacity 4-port SATA card | ||
| Storage hard disk | Monitoring level, standard 4T(standard), maximum support 100T | ||
| Data backup | Support disk array RAID1 RAID5 | ||
| Mode of operation | With industrial keyboard and mouse, support keyboard touch dual operation mode | ||
| Collection | Can support 30-36 recorders simultaneously acquisition and charging | ||
|
Application features
|
Automatic data collection | Automatic data collection after law enforcement instrument access.Classified storage by police officer Number, Device number, acquisition date， To the right police officer. | |
| High-speed data transmission | High speed 300M / min, users can customize only a set of law enforcement instrument to upload data， Or there are multiple law enforcement instruments to upload data at the same time.Multi-data upload technology to give full play to the hardware performance of the acquisition station
|
||
| File upload | Priority upload function, you can make any law enforcement instrument as a priority，The law enforcement instrument priority upload, other law enforcement instrument waiting | ||
| Mode of operation | Capacitive touch | ||
| Disk storage | Storage space automatically switches to support multiple disk storage when one Automatically switches to the next storage space when the disk is full
|
||
| Fast charging | Law enforcement instrument data acquisition is complete,automatically charge it, each individual 2.0 A | ||
| Automatic Data emptying | After the data acquisition is complete, the video and audio data inside the law enforcement recorder is automatically emptied. | ||
| Breakpoint resume | Support HTTP, law enforcement logger accidentally disconnected during the import process does not affect the integrity and uniqueness of the imported data. | ||
| Data view | Support on the workstation to view the imported data, play, export, delete and other operations. | ||
| Physical location correspondence | Support | ||
| Compatibility | Support all brands and models of recorder equipment that comply with the standard of "single police law enforcement video and audio recorder" (GA/T947-2011) of the Ministry of Public Security | ||
| Automatic calibration of equipment | Support through the acquisition station to complete the automatic School of law enforcement recorder, synchronized with the time server. | ||
| File retrieval function | Support according to the police officer Name, time, file type and other multiple options to find, play, export, manage the required audio and video. | ||
| Calendar search | Additional information such as the number of files can be retrieved based on the calendar | ||
| Manage permission ratings | The system is divided into administrators, general users, ordinary users, etc. for hierarchical management | ||
| Data export function | Users can export the data within the permissions to a specific storage device,you can set the data can only be exported to the Public Security Special Security U Disk. | ||
| Voice broadcast | Software supports voice broadcast | ||
| Safety protection | No matter how the data is on the server, or how the collection station, the end user is opaque,the user can not leave the system, the data operation | ||
| Data management background | In the same LAN, any computer phone through the acquisition station ip for remote access,so that the data query download and so on | ||
| Host interface
|
Switch button | 1 PCs. | |
| PS2 | 2 PCs. | ||
| Network interface | 1 PCs. | ||
|
Physical characteristics |
Power supply | Great Wall 500W high power power supply | |
| Working environment | Minus 10℃--50℃ | ||
| Storage temperature | Minus 20℃--60℃ | ||
| Power supply mode | 110-220V AC | ||
| Body weight | 55KG | ||
| Appearance size | 500mm*370mm*1550mm | ||
| Package size | 600mm*680mm*1620mm | ||
